Xiamen TDER Industrial Co., Ltd.

Wheel Loader

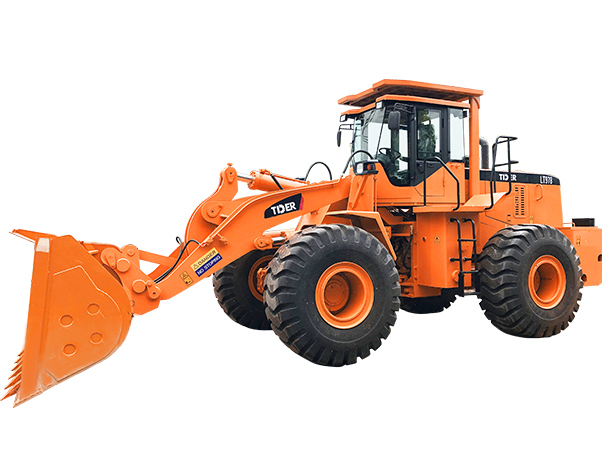

7T Wheel Loader
  • 7T Wheel Loader
Product manual available for download at any time
Please leave your information below for more product information
7T Wheel Loader
Engine Model
WEICHAI
Operation Weight
24300 kg
Bucket Capacity
4~6 m³
7T Wheel Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1.Cab with broad view, noise-isolation and vibration absorb-er meets all kinds of operation,which can bedismantled for Large space. Radio with MP3 function and speaker,thejoystick control system(Optional) ensure easy operation and more comfortable.

2.Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation.

3.Radio with USB key let drivers enjoy his working.

4.The low vibration suspending seat is designed specially for the operator that improve the human feeling.

5.Precise instrument system can supervise the parameters about fuel, water temperature and air pressure.

6.Dust-proof gear selector is flexible shaft structure. which ensure flexible operation , reliable and accurate gear setting and long operating life.

7.Big fan with wide blade and large radiator.

8.Quick hitch for special needs such as the log grapple, block fork, snow blade, grass forkenlarged bucket and teeth etc.

9.High-performance engine is adopted for strong power, low fuel consumption, low construction and low noise.

10.Hydraulic motor driving, easy to maintain.

11.Versatile,reliable,excellent in small space.

12.Hydraulic steering, easy to control.

13.Air over hydraulic brake system ,caliper brake system, ensure safety.

14.Wheel reduction axle, automatic bucket flat,decrease drivers workload.

15.Over load protection system, prolong machines working life.

16.Heavy-duty frame structure with strong and thick steel is designed to resist twisting forces, torsional shock and stresses generated during the loading cycle while protecting drive line and hydraulic system components.

17.Suitable for seaside, high temperture and humidity environment.

18.All the steel plates are thickened increases the total weight of the machine.

19.The entering arrangement of overlapped front and rear wheel tracks during the turning, which can effectively prolong the working lifetime of the tires.

20.Exclusive dust-proof layer, sealed articulated points make the loader more durable.

21.Strong structure makes the machine more durable

22.The planetary transmission, superior in the efficiency delivery and overload adaption

23.Long wheelbase,reasonable assignment of axle load and stableness od driving & operating

24.The pin with dustproof and the external grease fittings offer easy maintenance

25.Special buckets and A/C system can be selected to meet different users requirements

26.Flexible suspended two-way dampin



parameters
ModelLT978
Engine Brand/ModelWeichai WEICHAI WD10G270E201
Rated power199KW/2200r/min
Overall dimensions8600mmX3230mmX3800mm
Operating weight24300KGS
Rated loading capacity7T
Bucket capacity4~6m³
Bucket width? mm
Wheelbase3380mm
Tread width2280mm
Dumping height3460mm
Dumping reach1300mm
Turning angle35°±1°
Max. Climbing Gradient30°
Turning radius7400mm
Max. breakout force202kN
Max. torque186kN
Bucket Lifting time≤6.5s
Hydraulic cylinder time≤12s
Specification of tire26.5R25
TransmissionCountershaft
Speed Gear ShiftForward 4/Reverse 4
Fuel Tank230L
Hydraulic Oil Tank230L
