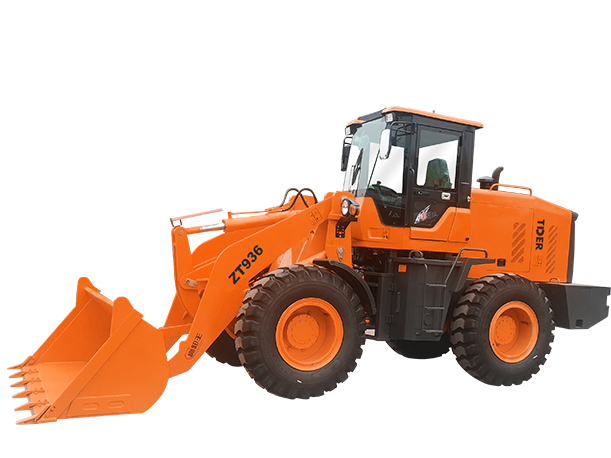

3.5T Wheel Loader
Engine Model
WEICHAI
Operation Weight
10200 kg
Bucket Capacity
1.8 m³
3.5T Wheel Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1. Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.

2.  Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

3. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

4. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.

5. Load sensing fully hydraulic steering system makes operation easy.

6. Air over hydraulic brake system; Caliper disc brakes.

7. Working device with automatically leveling ability at high position.

8. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

parameters
Performance1rated loading3500kg
2overall weight10200kg
3rated bucket capacity1.8m3
4maximum tractive force97KN
5maximum breakout force127KN
6maximum grade ability30℃
7aximum dump height3100mm
8maximum dump reach1006mm
9overall dimension (L×W×H)6890×2400×3070mm
10minimum turning radius5250mm
Engine11modelWEICHAI  WP6G125E22
12typelnline water cooled, four stroke
13No. of cylinder-bore/stroke6—108×125mm
14rated power92kw
15maximum torque515N.m
16min fuel-consume ratio≤210g/kw.h
Transmission system17torque converterYJ315—x
18gearbox mode Power shift normally engaged straight gear
19gear shift4forward shift  2 reverse shift
20 maximum speed40km/h
Drive axles21main reducing modeBevel gear grade lreduction
22decelerating modeBevel gear grade lreduction
23 wheel base (mm)2850mm
24wheel tread1800mm
25 ground clearance400mm
Hydraulic system26system working pressure16.5MPa
27boom lifting time4.83s
28total time9.15s±0.5s
29fuel tank capacity156L
30function of leveling automaticallyyes
