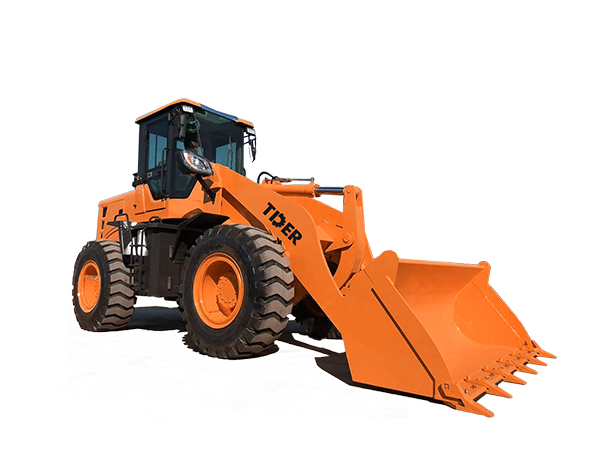

3T Wheel Loader
  • 3T Wheel Loader
Product manual available for download at any time
Please leave your information below for more product information
3T Wheel Loader
Engine Model
WEICHAI
Operation Weight
9700 kg
Bucket Capacity
1.8 m³
3T Wheel Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1. Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.

2.  Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

3. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

4. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.

5. Load sensing fully hydraulic steering system makes operation easy.

6. Air over hydraulic brake system; Caliper disc brakes.

7. Working device with automatically leveling ability at high position.

8. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

parameters
ModelZT930
Bucket capacity1.8 m³
Rated load3000 kg
Overall dimension7300*2300*3200mm
Operating weight9700 kg
Max. dumping height3200 mm
Max. dumping distance1000 mm
EngineWeichai DEUTZ
Cylinder number6-cylinders
Rated power92 KW (125HP)
Steering typeFull-hydraulic, articulated
Torque converter modelYJ320, automatic, hydraulic converter
Gear shift4 forward, 2 reverse
Max. speed39 km/h
Axle4WD, heavy hub reduction
Tire size17.5-25
Service brakeGas cap oil disc brake on 4 wheels
Parking brakeHand operated caliper disc
Operating typeMechanical double joystick
Optional operating typePilot control
Optional configurationAir conditioner, rearview camera etc.
Optional attachmentQuick hitch, fork, log grapple etc.
