Xiamen TDER Industrial Co., Ltd.

Wheel Loader

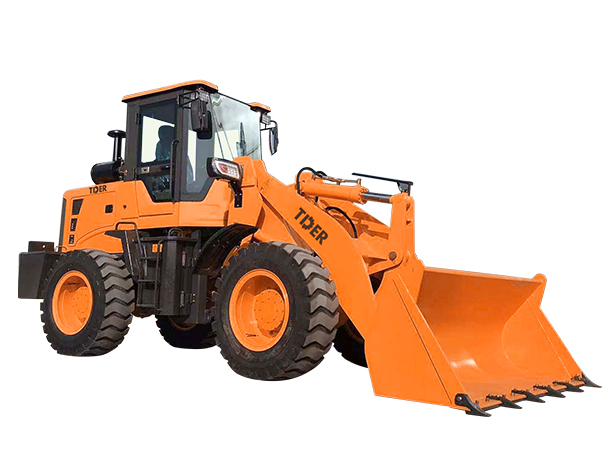

2.5T Wheel Loader
  • 2.5T Wheel Loader
Product manual available for download at any time
Please leave your information below for more product information
2.5T Wheel Loader
Engine Model
Yu Chai
Operation Weight
5800 kgg
Bucket Capacity
1.3 m³
2.5T Wheel Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1. Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.

2.  Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

3. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

4. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.

5. Load sensing fully hydraulic steering system makes operation easy.

6. Air over hydraulic brake system; Caliper disc brakes.

7. Working device with automatically leveling ability at high position.

8. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.


parameters
ModelZT925
Rated capacity2500kg
Operation weight5800kg
Rated bucket capacity 1.3m³
Maximum unloading height3600mm
Maximum unloading distance1000mm
Overall dimension(L×W×H)6400*2300*2950
Bucket width2200mm
Engine YUCHAI
TypeEFI
Number of Cylinder4
Rated output85KW
Torque Converter TypeMultitronic
Gearbox Model265
Number of gearfront 4 & behind 4
Max. speed36Km
Wheel edge reduction typeLarge wheel side reduction axle
Axle distance2700mm
wheel track1660mm
Tire size16/70--24
Service brakeGas cap oil disc brake on 4 wheels
Parking brakeHand operated caliper disc
Operating typeMechanical single joystick
Optional operating typePilot control
Optional configurationAir conditioner, rearview camera etc.
Optional attachmentQuick hitch, fork, log grapple etc.
