Xiamen TDER Industrial Co., Ltd.

Wheel Loader

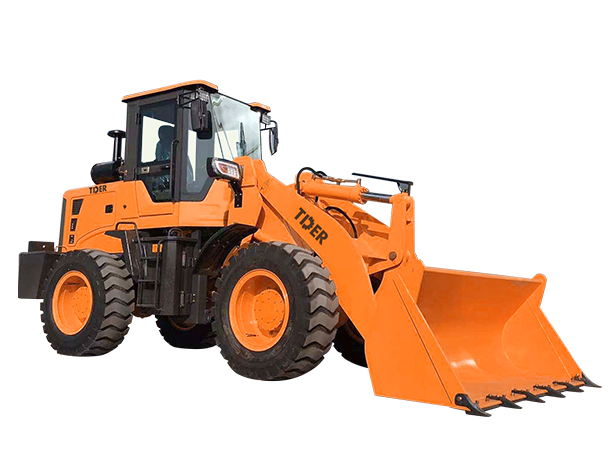

2T Wheel Loader
  • 2T Wheel Loader
Product manual available for download at any time
Please leave your information below for more product information
2T Wheel Loader
Engine Model
YUN Nei
Operation Weight
5000 kg
Bucket Capacity
1.2 m³
2T Wheel Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1. Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.

2.  Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

3. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

4. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.

5. Load sensing fully hydraulic steering system makes operation easy.

6. Air over hydraulic brake system; Caliper disc brakes.

7. Working device with automatically leveling ability at high position.

8. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

parameters
ModelZT920
Rated capacity2000kg
Operation weight5000kg
Rated bucket capacity 1.2m³
Maximum unloading height3500mm
Maximum unloading distance1000mm
Overall dimension(L×W×H)5650×2000×2750mm
Min. turning radius3750mm
Bucket width2050mm
Engine ModelYUNNEI
Rated output76KW
Torque Converter TypeMultitronic
Gearbox Model265
Number of gearfront 4 & behind 4
Max. speed36Km
Wheel edge reduction typeMedium & Large wheel side reduction axle
Axle distance2330mm
wheel track1580mm
Tire size16/70--20
Service brakeGas cap oil disc brake on 4 wheels
Parking brakeHand operated caliper disc
Operating typeMechanical single joystick
Optional operating typePilot control
Optional configurationAir conditioner, rearview camera etc.
Optional attachmentQuick hitch, fork, log grapple etc.
