Wheel Loader

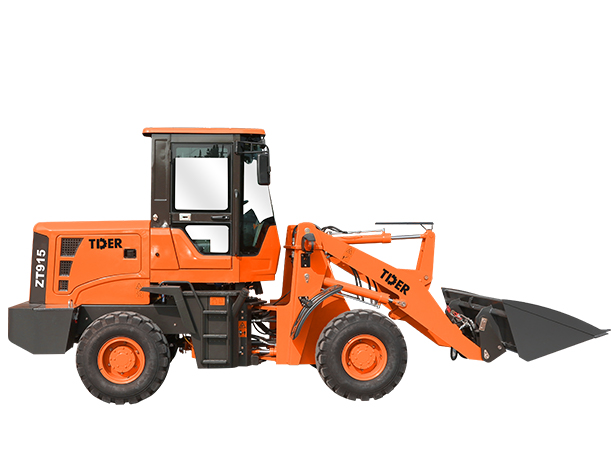

1.5T Wheel Loader
  • 1.5T Wheel Loader
Product manual available for download at any time
Please leave your information below for more product information
1.5T Wheel Loader
Engine Model
YUN Nei
Operation Weight
3150 kg
Bucket Capacity
0.8 m³
1.5T Wheel Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1. Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.

2.  Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

3. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

4. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.

5. Load sensing fully hydraulic steering system makes operation easy.

6. Air over hydraulic brake system; Caliper disc brakes.

7. Working device with automatically leveling ability at high position.

8. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

parameters
ModelZT915
Rated capacity1500kg
Operation weight3150kg
Rated bucket capacity 0.8m³
Maximum unloading height2900mm
Maximum unloading distance1000mm
Overall dimension(L×W×H)5325×1825×2700mm
Min. turning radius3750mm
Engine ModelYUNNEI
Rated output55KW
Torque Converter TypeMultitronic
Gearbox Model240
Number of gearfront 2 & behind 2
Max. speed
Wheel edge reduction typeSmall round edge bridge
Tyre size20.5--16
Service brakeGas cap oil disc brake on 4 wheels
Parking brakeHand operated caliper disc
Operating typeMechanical single joystick
Optional operating typePilot control
Optional configurationAir conditioner, rearview camera etc.
Optional attachmentQuick hitch, fork, log grapple etc.
