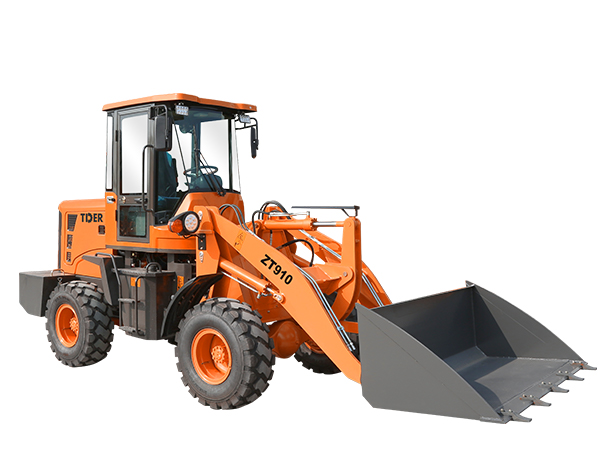

1T Wheel loader
  • 1T Wheel loader
Product manual available for download at any time
Please leave your information below for more product information
1T Wheel loader
Engine Model
YUN Nei
Operation Weight
3550 kg
Bucket Capacity
0.8 m³
1T Wheel loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1. Separated gearbox and torque converter with hydrodynamic transmission technology make high reliability and easy maintenance.

2.  Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.

3. Single pump, split flow working hydraulic system makes lower consumption and excellent performance.

4. Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.

5. Load sensing fully hydraulic steering system makes operation easy.

6. Air over hydraulic brake system; Caliper disc brakes.

7. Working device with automatically leveling ability at high position.

8. Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.


parameters
ModelLT910
Bucket capacity0.8 m³
Rated load1000 kg
Overall dimension5600*1810*2750mm
Operating weight3550 kg
Max. dumping height3200 mm
Max. dumping distance900 mm
EngineYunnei
Cylinder number4-cylinders
Rated power37 KW (50.32HP)
Steering typeFull-hydraulic, articulated
Torque converter typeAutomatic, hydraulic converter
Gear shift2 forward, 2 reverse
Max. speed25 km/h
Axle4WD, Isuzu
Tyre size20.5-16
Service brakeoil drum brake on 4 wheels
Parking brakeHand operated drum brake
Operating typeMechanical single joystick
Optional operating typePilot control
Optional configurationAir conditioner, rearview camera etc.
Optional attachmentQuick hitch, fork, log grapple etc.
