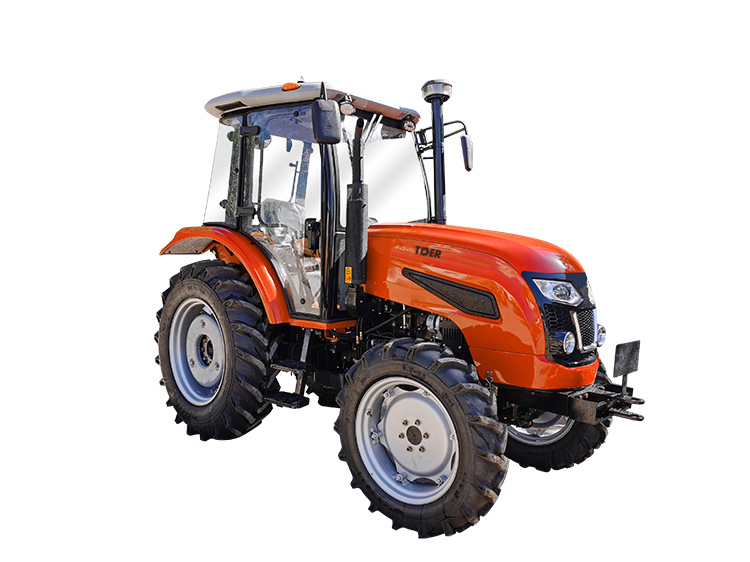

100HP Tractor
  • 100HP Tractor
Product manual available for download at any time
Please leave your information below for more product information
100HP Tractor
Engine Model
quanchai
Operation Weight
Bucket Capacity
100HP Tractor
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

Strong motive power

  • Adopt Quanchai diesel engine series, large reserves of torque,

  • low fuel consumption and high economic efficiency.

High reliability
  • The reinforced PTO structure, large bearing capacity,meets the requirements of different operation.

  • Imported high strength powder metallurgic clutch plate,reliable transmission.

Efficient operation
  • Adopts 4×(1 + 1) ×2 compound transmission, 8F + 8R gear, shuttle shift, side control, easy to operate.

  • Vertical double oil cylinder high pressure lifter, large lifting force and good operation adaptability.

  • Optional for creeper gearbox , meets different working conditions.

Comfortable operation
  • Hanging flat panel console, reasonable man-machine engineering.

  • Full hydraulic steering system, flexible and comfortable operation.

  • Optional for cab, comfortable driving space.

parameters
ModelTD1004
Type4X4
Overall dimension(mm)Length4080
Width1750
High2650
Wheelbase(mm)2010
Front wheel tread(mm)1285
Rear wheel tread(mm)1340
Gear box12F+12R
Speed(km/h)going0.44-33.34
retread0.59-10.31
Enginemodel4C6-10035
Rated power(kw)73.5
Rated speed(r/min)2400
Tyre typeFront tyre9.5-24
Rear tyre14.9-30
Steering system typeAll hydraulic front wheel steering
Max.lift-off weight(KN)17.7
PTO typeRear-mounted semi-detached
PTO speed(r/min)760/1000(540/1000 or 540/760 or 760/850 is also available)
PTO power(kw)62.5
Roots in control modeHeight adjustment,floating control
Max.traction(KN)23.2


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
