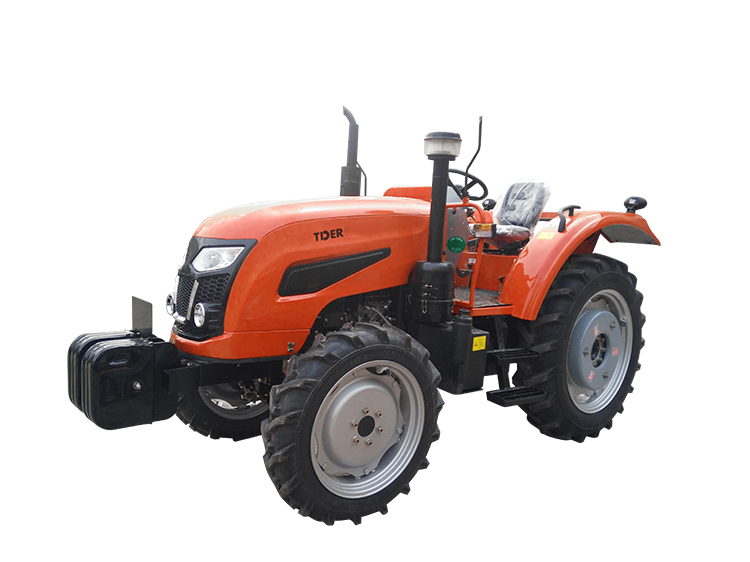

| Model | TB804 | ||
| Type | 4X4 | ||
| Overall dimension(mm) | Length | 3925 | |
| Width | 1728 | ||
| High | 2170 | ||
| Wheelbase(mm) | 2010 | ||
| Front wheel tread(mm) | 1265 | ||
| Rear wheel tread(mm) | 1200-1500(1350) | ||
| Min.ground clearance(mm) | 375 | ||
| Gear box | 12F+12R | ||
| Speed(km/h) | going | 2.33-31.04 | |
| retread | 2.04-27.21 | ||
| Engine | model | 4C6-80U32 | |
| Rated power(kw) | 58.8 | ||
| Rated speed(r/min) | 2300 | ||
| Tyre type | Front tyre | 8.3-24 | |
| Rear tyre | 11-32 | ||
| Steering system type | All hydraulic steering | ||
| Max.lift-off weight(KN) | 14.2 | ||
| PTO type | Rear-mounted semi-detached or detach | ||
| PTO speed(r/min) | 540/760(540/1000 is also available) | ||
| PTO power(kw) | 44.6 | ||
| Roots in control mode | Height adjustment,floating control | ||
| Max.traction(KN) | 14.1 | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
