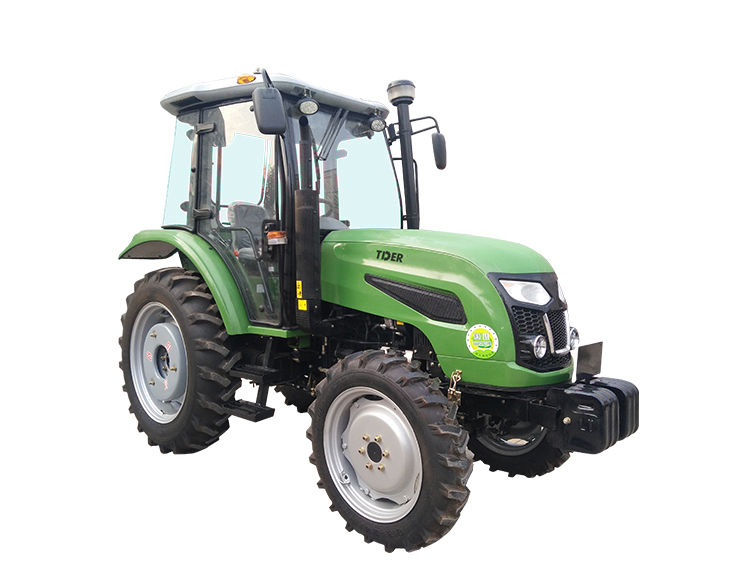

| Model | TB704 | |
| Type | 4X4 | |
| Overall dimension(mm) | Length | 3925 |
| Width | 1728 | |
| High | 2170 | |
| Wheelbase(mm) | 2010 | |
| Front wheel tread(mm) | 1265 | |
| Rear wheel tread(mm) | 1200-1500(1350) | |
| Min.ground clearance(mm) | 375 | |
| Gear box | 12F+12R | |
| Speed(km/h) | going | 2.33-31.04 |
| retread | 2.04-27.21 | |
| Engine | model | 4K41ZT31/703 |
| Rated power(kw) | 51.5 | |
| Rated speed(r/min) | 2300 | |
| Tyre type | Front tyre | 8.3-24 |
| Rear tyre | 11-32 | |
| Steering system type | All hydraulic steering | |
| Max.lift-off weight(KN) | 13.5 | |
| PTO type | Rear-mounted semi-detached or detach | |
| PTO speed(r/min) | 540/760(540/1000 is also available) | |
| PTO power(kw) | 43.8 | |
| Roots in control mode | Height adjustment,floating control | |
| Max.traction(KN) | 13 | |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
