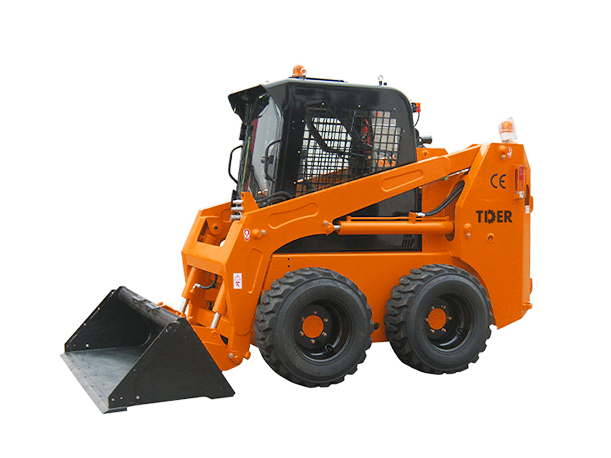

1200 kg Wheel Skid Steer Loader
  • 1200 kg Wheel Skid Steer Loader
Product manual available for download at any time
Please leave your information below for more product information
Skid Steer Loader
1200 kg Wheel Skid Steer Loader
Engine Model
WEICHAI
Operation Weight
3600 kg
Bucket Capacity
0.55 m³
Manual Download
Service and support Dealer inquiry Accessories
Get a quote
1200 kg Wheel Skid Steer Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1.Dual Accelerator Control Model: manual operated + foot operated, easy to operate

2.Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing

3.Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.

4.Optimization design, high strength chassis. Three kinds of driving modes
（1）Chain drive (supply power to four wheels through two-side motors and chain)

（2）Gear drive (supply power to four wheels through two-side motors and gear)

（3）Direct drive (drive the four wheels by four motors)

5.Hydraulic quick-change coupler is the same as BOBCAT, and is suitable to our skid steer loader attachments as well as foreign attachments

6.Equip with oversize radiator and oil tank, for satisfying the continues working requests in tropical zone


parameters
ModelTDS120
 Operating load (kg)1200
 Max Speed（km/h）12\18
Rated flux (L/min)75
High Flow Flux (L/min)140
Tire（track） model12-16.5
Rated power (Kw)103
Fuel tank capacity (L)90
self weight bucket (kg)3600
Bucket capacity (m³)0.55
Overall operating height (mm)4070
Height to bucket hinge pin (mm)3150
Hheight to top of cab (mm)2160
Height to bottom of level bucket(mm)2983
Without bucket length（mm）2880
Overall length with bucket(mm)3580
Dumping angle at maximum height(° )40
Dumping height(mm)2450
Dumping reach(mm)700
Rollback o bucket on ground(° )30
Rollback of bucket at full height(° )104
Wheelbase(mm)1185
Ground clearance(mm)205
Angle of departure(° )20
Front turning radius without bucket(mm)1278
Front tuning radius(mm)2144
Rear tuning radius(mm)1857
Rear axle to bumper (mm)1082
Tread width (mm)1500
Width (mm)1880
Bucket width (mm)1880
