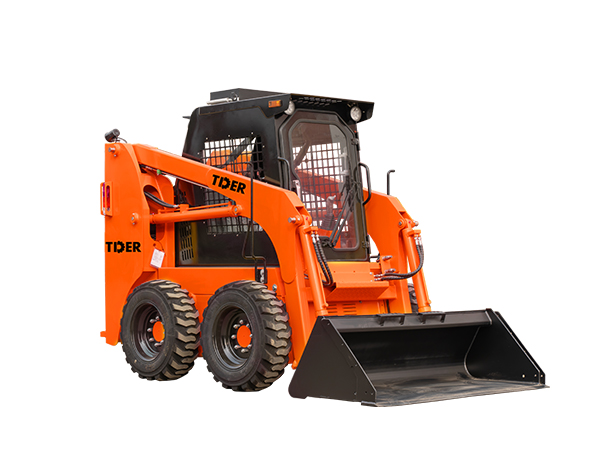

700 kg Wheel Skid Steer Loader
  • 700 kg Wheel Skid Steer Loader
Product manual available for download at any time
Please leave your information below for more product information
Skid Steer Loader
700 kg Wheel Skid Steer Loader
Engine Model
XIN CHAI
Operation Weight
2700 kg
Bucket Capacity
0.4 m³
Manual Download
Service and support Dealer inquiry Accessories
Get a quote
700 kg Wheel Skid Steer Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1.Dual Accelerator Control Model: manual operated + foot operated, easy to operate

2.Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing

3.Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.

4.Optimization design, high strength chassis. Three kinds of driving modes
（1）Chain drive (supply power to four wheels through two-side motors and chain)

（2）Gear drive (supply power to four wheels through two-side motors and gear)

（3）Direct drive (drive the four wheels by four motors)

5.Hydraulic quick-change coupler is the same as BOBCAT, and is suitable to our skid steer loader attachments as well as foreign attachments

6.Equip with oversize radiator and oil tank, for satisfying the continues working requests in tropical zone


parameters
MoelTDS45
Operating load (kg)700
Max Speed（km/h）12
Rated flux (L/min)62.5
High Flow Flux (L/min)
Tire（track） model10-16.5
Rated power (Kw)37
Fuel tank capacity (L)70
self weight bucket (kg)2700
Bucket capacity (m³)0.4
Overall operating height (mm)3980
Height to bucket hinge pin (mm)3080
Hheight to top of cab (mm)2140
Height to bottom of level bucket(mm)2913
Without bucket length（mm）2640
Overall length with bucket(mm)3420
Dumping angle at maximum height(° )40
Dumping height(mm)2380
Dumping reach(mm)700
Rollback o bucket on ground(° )30
Rollback of bucket at full height(° )104
Wheelbase(mm)991
Ground clearance(mm)185
Angle of departure(° )20
Front turning radius without bucket(mm)1168
Front tuning radius(mm)1958
Rear tuning radius(mm)1630
Rear axle to bumper (mm)1108
Tread width (mm)1450
Width (mm)1720
Bucket width (mm)1740
