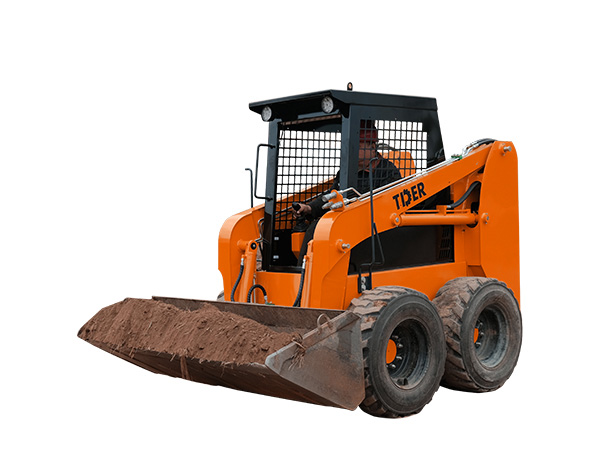

500 kg Wheel Skid Steer Loader
  • 500 kg Wheel Skid Steer Loader
Product manual available for download at any time
Please leave your information below for more product information
Skid Steer Loader
500 kg Wheel Skid Steer Loader
Engine Model
XIN CHAI
Operation Weight
2300 KG
Bucket Capacity
0.3 m³
Manual Download
Service and support Dealer inquiry Accessories
Get a quote
500 kg Wheel Skid Steer Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1.Dual Accelerator Control Model: manual operated + foot operated, easy to operate

2.Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing

3.Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.

4.Optimization design, high strength chassis. Three kinds of driving modes
（1）Chain drive (supply power to four wheels through two-side motors and chain)

（2）Gear drive (supply power to four wheels through two-side motors and gear)

（3）Direct drive (drive the four wheels by four motors)

5.Hydraulic quick-change coupler is the same as BOBCAT, and is suitable to our skid steer loader attachments as well as foreign attachments

6.Equip with oversize radiator and oil tank, for satisfying the continues working requests in tropical zone


parameters
ModelTDS40
 Operating load (kg)500
 Max Speed（km/h）10
Rated flux (L/min)60
High Flow Flux (L/min)
Tire（track） model8.5-15
Rated power (Kw)37
Fuel tank capacity (L)60
self weight bucket (kg)2300
Bucket capacity (m³)0.3
Overall operating height (mm)3300
Height to bucket hinge pin (mm)2725
Hheight to top of cab (mm)2000
Height to bottom of level bucket(mm)2558
Without bucket length（mm）2300
Overall length with bucket(mm)2950
Dumping angle at maximum height(° )40
Dumping height(mm)2050
Dumping reach(mm)790
Rollback o bucket on ground(° )30
Rollback of bucket at full height(° )104
Wheelbase(mm)897
Ground clearance(mm)140
Angle of departure(° )20
Front turning radius without bucket(mm)1098
Front tuning radius(mm)1760
Rear tuning radius(mm)1296
Rear axle to bumper (mm)964
Tread width (mm)1080
Width (mm)1350
Bucket width (mm)1400
