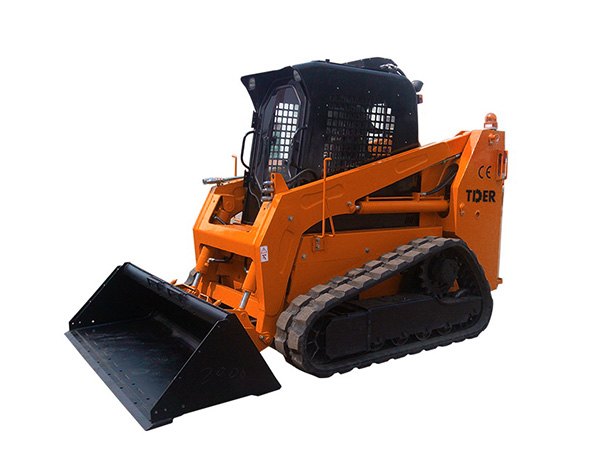

1500 kg Crawler Skid Steer Loader
  • 1500 kg Crawler Skid Steer Loader
Product manual available for download at any time
Please leave your information below for more product information
1500 kg Crawler Skid Steer Loader
Engine Model
WEICHAI
Operation Weight
4800 kg
Bucket Capacity
0.5 m³
1500 kg Crawler Skid Steer Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1.Dual Accelerator Control Model: manual operated + foot operated, easy to operate.

2.Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing.

3.Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.

4.Optimization design, high strength chassis. Three kinds of driving modes.
(1)Chain drive (supply power to four wheels through two-side motors and chain);

(2)Gear drive (supply power to four wheels through two-side motors and gear);

(3)Direct drive (drive the four wheels by four motors);

5.Hydraulic quick-change coupler is the same as BOBCAT, and is suitable to our skid steer loader attachments as well as foreign attachments.

6.Equip with oversize radiator and oil tank, for satisfying the continues working requests in tropical zone.

parameters
ModelDS125
 Operating load (kg)1500
 Max Speed(km/h)128
Rated flux (L/min)88
High Flow Flux (L/min)140
Tire(track) model450 X86
Rated power (Kw)103
Fuel tank capacity (L)90
self weight bucket (kg)4800
Bucket capacity (m³)0.6
Overall operating height (mm)4070
Height to bucket hinge pin (mm)3150
Hheight to top of cab (mm)2160
Height to bottom of level bucket(mm)2983
Without bucket length(mm)3000
Overall length with bucket(mm)3700
Dumping angle at maximum height(° )40
Dumping height(mm)2450
Dumping reach(mm)700
Rollback o bucket on ground(° )30
Rollback of bucket at full height(° )104
Wheelbase(mm)1500
Ground clearance(mm)200
Angle of departure(° )20
Front turning radius without bucket(mm)1365
Front tuning radius(mm)2200
Rear tuning radius(mm)1742
Rear axle to bumper (mm)938
Tread width (mm)1654
Width (mm)2124
Bucket width (mm)2160
