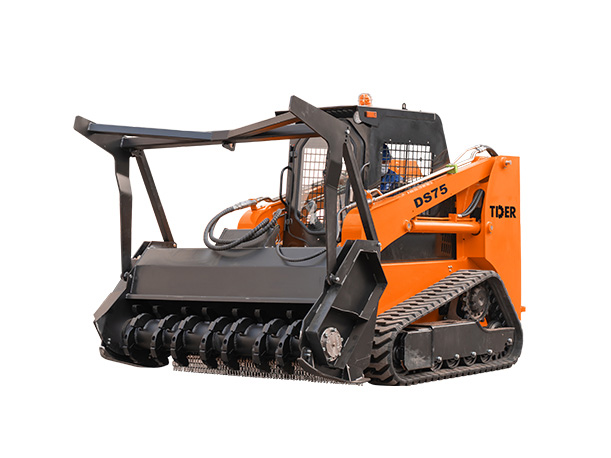

1050 kg Crawler Skid Steer Loader
  • 1050 kg Crawler Skid Steer Loader
Product manual available for download at any time
Please leave your information below for more product information
Skid Steer Loader
1050 kg Crawler Skid Steer Loader
Engine Model
WEICHAI
Operation Weight
1050 kg
Bucket Capacity
0.5 m³
Manual Download
Service and support Dealer inquiry Accessories
Get a quote
1050 kg Crawler Skid Steer Loader
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1.Dual Accelerator Control Model: manual operated + foot operated, easy to operate

2.Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing

3.Centre monitor: fuel oil level and temperature gauge, water temperature gauge, oil pressure, chronometer, indicator light, warning lamp and so on.

4.Optimization design, high strength chassis. Three kinds of driving modes
（1）Chain drive (supply power to four wheels through two-side motors and chain)

（2）Gear drive (supply power to four wheels through two-side motors and gear)

（3）Direct drive (drive the four wheels by four motors)

5.Hydraulic quick-change coupler is the same as BOBCAT, and is suitable to our skid steer loader attachments as well as foreign attachments

6.Equip with oversize radiator and oil tank, for satisfying the continues working requests in tropical zone


parameters
ModelDS75
 Operating load (kg)1050
 Max Speed（km/h）12
Rated flux (L/min)80
High Flow Flux (L/min)120
Tire（track） model 320X84
Rated power (Kw)55
Fuel tank capacity (L)90
self weight bucket (kg)3800
Bucket capacity (m³)0.5
Overall operating height (mm)3480
Height to bucket hinge pin (mm)2900
Hheight to top of cab (mm)2150
Height to bottom of level bucket(mm)2730
Without bucket length（mm）2750
Overall length with bucket(mm)3500
Dumping angle at maximum height(° )40
Dumping height(mm)2230
Dumping reach(mm)715
Rollback o bucket on ground(° )30
Rollback of bucket at full height(° )104
Wheelbase(mm)1500
Ground clearance(mm)200
Angle of departure(° )20
Front turning radius without bucket(mm)1298
Front tuning radius(mm)2010
Rear tuning radius(mm)1714
Rear axle to bumper (mm)890
Tread width (mm)1462
Width (mm)1782
Bucket width (mm)1830
