500kg Road Roller
  • 500kg Road Roller
Product manual available for download at any time
Please leave your information below for more product information

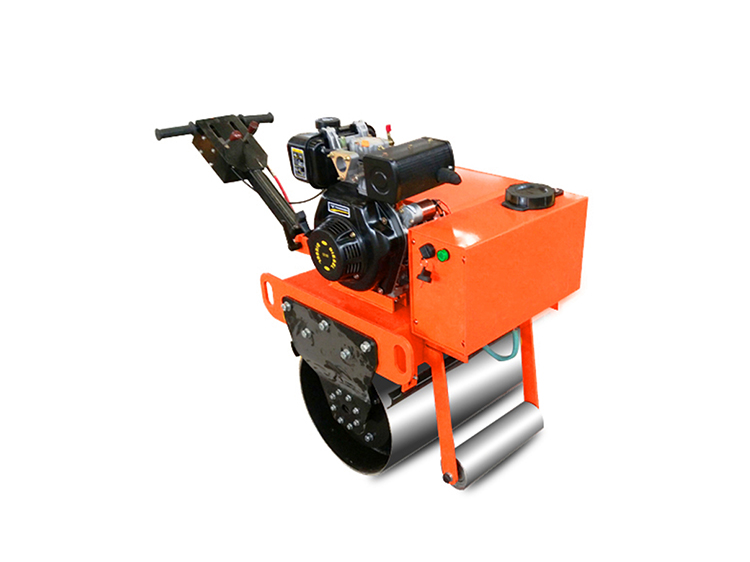

500kg Road Roller
Engine Model
HONDA
Operation Weight
500kg
Bucket Capacity
500kg Road Roller
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

Application
Road, trenches, country and township roads and parking ground etc. This roller is suitable for compacting and repairing the asphalt pavement and road base.

Main features
1) Mechanical drive, Mechanical vibration, High reliability

2) Vertical vibration with great centrifugal force and high efficiency

3) Compact design with short turning radius ensure rolling compaction into narrow ground

4) A trailer is provided for transportation, more conveniently and energy saving.

5) The domestic or imported engines are optional(diesel engine or gasoline engine)

parameters
Model
TR05
Weights
Operating weightkg540
Static linear loadN/cm45
Dimensions

Working widthmm788
Total lengthmm2480
Total height with ROPSmm1300
Drum widthmm600
Drum diametermm426
Wheel basemmRecoil, electric start
Drive
Engine manufacturer
HONDA
Type
GX270
Engine type
Gasoline four-stroke
Number of cylinders
1
Power ISO 14396kW6.7
Rating speedrpm3600
Overall Size
Total length (L)mm2480
Working width (W)mm788
Total height (H)mm1300
Height loading, min. (H1)mm426
Drum width (W1)mm600
Driving characteristics
Speedkm/h0-3.8
Climbing ability, vibration on/off%30
FrequencyHz70
Amplitudemm0.6
Centrifugal forcekN20
Sprinkler system

Type of sprinkling
Gravity spray
Hydraulic oill18
Fuell5.9
Waterl20
