Xiamen TDER Industrial Co., Ltd.

Backhoe Loader

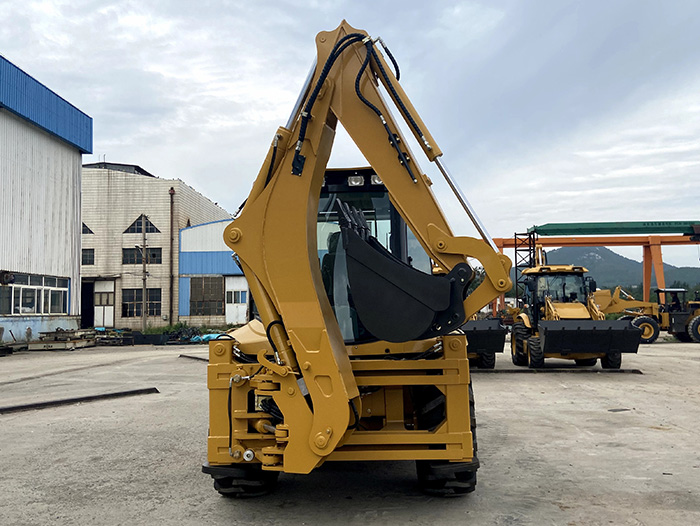

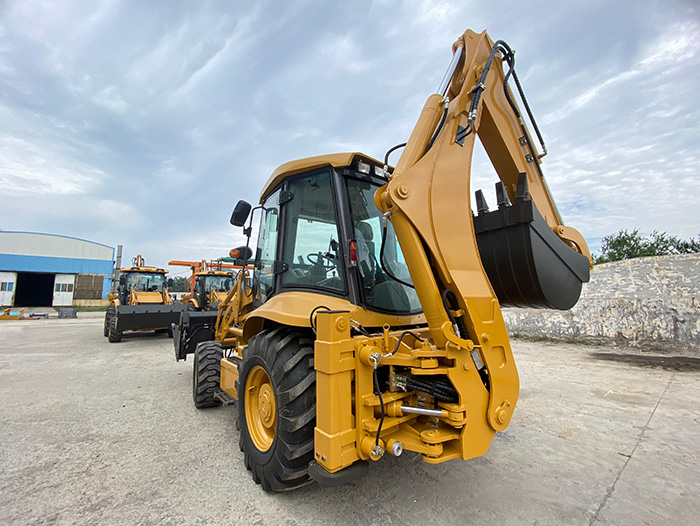

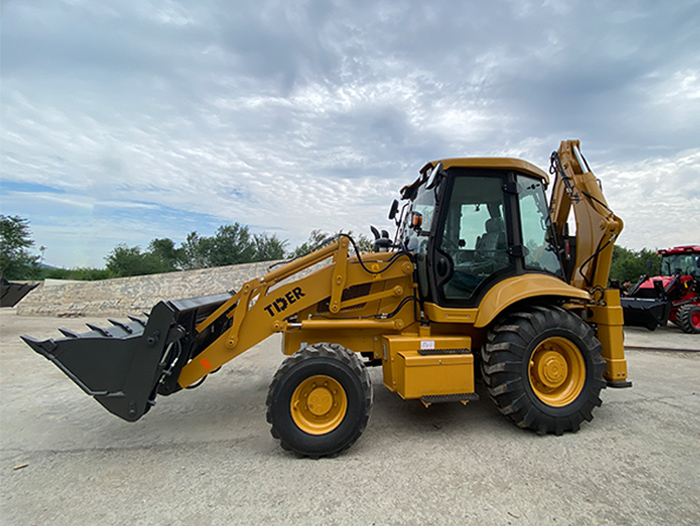

2.5T Backhoe Loader ZT388T
  • 2.5T Backhoe Loader ZT388T
Product manual available for download at any time
Please leave your information below for more product information
2.5T Backhoe Loader ZT388T
Engine Model
YU CHAI
Operation Weight
2500 KG
Bucket Capacity
1.0 M³
2.5T Backhoe Loader ZT388T
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1. The backhoe loader adopts Weichai Deutz WP4G95E221 engine (Dongfeng Cummins is optional), which has the advantages of low noise, low fuel consumption, large power reserve and low emission.

2. The backhoe loader adopts the transmission system specially produced by Italian CARRARO company for backhoe loader. There are 2-wheel drive and 4-wheel drive models, both with differential lock and wet braking.

3. The dual-transformation system adopts imported four-speed synchronous, electro-hydraulic control forward, backward, and mechanical synchronous gear shifting specially designed for backhoe loaders.

4. The loader has a hydraulic drive clutch and a clutch disengagement button that enables the machine to quickly shift gears according to road conditions.

5. Electro-hydraulic control forward/reverse direction switching, no need to operate the clutch. Due to the low operating force, the direction change is smoother, the work cycle is faster, and the production efficiency is higher.

6. Imported drive axles specially designed for backhoe loaders, maintenance-free wet brakes, greatly improve the safety and reliability of driving. With differential lock, the traction performance of the vehicle is greatly improved.

7. The use of an open hydraulic system makes the operation more stable, the response more agile, and the excavation control more accurate.

8. The hydraulic system adopts a high-efficiency gear single-pump system, and the main components of the pump, multi-way valve, and steering gear are all selected from well-known domestic companies.

9. Using the first four gears and the rear four, the maximum forward speed is over 40 km/h, which can fully meet your needs. At the same time, the hydraulic hammer control oil circuit is configured for the user, and the user can install the hydraulic hammer at any time as needed. The unique operation design makes the operation more comfortable and labor-saving.

10. The service brake and parking brake are wet brake, which has good braking effect, convenient parking brake adjustment, original imported components, reliable quality, and ensures driving safety.

11. Provide users with a spacious and comfortable fully enclosed ROPS cab with all-round vision.

parameters
ZT388T BACKHOE LOADER STANDARD CONFIGURATION
Overall SizeOperating Weight8200kg
Overall Dimension6150×2250×3763mm
Wheel base2264mm
Min. Ground Clearance300mm
PerformanceBreakout Force38KN
Loading lifting capacity2500kg
Front Bucket Capacity1.0 m3
Bucket Dumping Height2650mm
Bucket Dumping Distance1025mm
Digging Height3878mm
Backhoe Capacity0.3cbm
Max. Digging Depth4085mm
Single angle of excavator grab190°
Max. pulling force39KN
EngineBrandDuetz WP4G95E221
TypeInline Direct Inject Turbocharged
No. of Cylinder-Bore/Stroke4-105x130
Rated Power70kw/95HP
Max. torque380 N.m/1400~1600rpm
Displacement4.5L
Rated Speed2200r/min
Min. Fuel Consumption230g/Kw·h
Steering systemModel of steering systemBZZ5-250
Steering angle±36°
Mini turning radius6581mm
Pressure of the system12MPa
System PressureLoading Hydraulic System16MPa
Digging Hydraulic System18Mpa
AxleBrandCarraro(Italy)
Driving Axle Load Capacity4/18.5T
Rated Dynamic/static load of front axle9T/22.5T
Rated Dynamic/static load of rear axle7.5T/18.75T
Transmission systemTorque converterYJ280
GearboxTLB14WD
TypeFixed Shaft Power shift/Electric Control
Max.speed38Km/h
Brake systemService brakeWet Internal self-regulatic self-balance type
Parking brakeSpring brake/hydraumatic terminating brake
TiresSize14-17.5/19.5L-24
Hydraulic systemDigging power of excavator grab46.5KN
Digging power of dipper31KN


With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
