Backhoe Loader

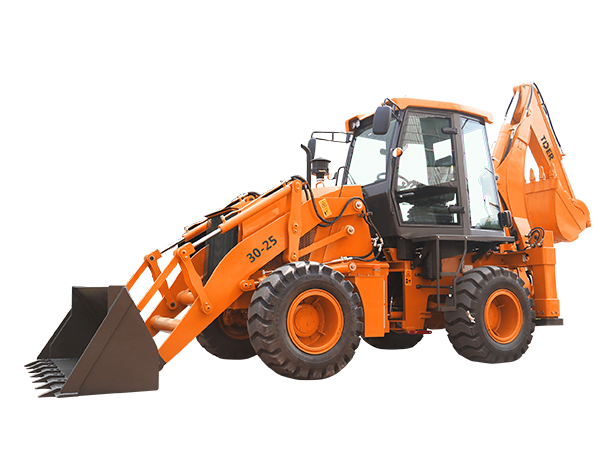

2.5T Backhoe Loader ZT30-25
  • 2.5T Backhoe Loader ZT30-25
Product manual available for download at any time
Please leave your information below for more product information
2.5T Backhoe Loader ZT30-25
Engine Model
Yu Chai
Operation Weight
2500 kg
Bucket Capacity
0.1~0.4 m³
2.5T Backhoe Loader ZT30-25
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1) The central articulated frame is adopted, the turning radius is smaller, the maneuverability is flexible, and the lateral stability is good, which is convenient for loading operations in narrow sites.

2) The front and rear chassis are made of special chassis at both ends. Each part is fully fixed in a high-strength overall structure. The parts are arranged reasonably and will not be affected by the impact force. Each part can be quickly replaced or repaired, so it has good durability. performance, and excellent stability.

3) The cab adopts a large area of glass, which has good lighting and wide field of vision, and the driver is more comfortable to operate.

4) The air-cap oil caliper disc foot brake system and the outer beam drum hand brake are used, and the braking is safe and reliable.

5) The hydraulic transmission structure is adopted to improve the reliability of the transmission system.

6) It adopts full hydraulic steering, power shifting, and hydraulic control of the working device. The operation of the whole machine is light and flexible, and the action is stable and reliable.

7) Using low-pressure wide-base off-road tires, the rear axle swings, which has good off-road performance and passing performance.

8) The excavation work device that can slide sideways makes the excavation range larger and the application range wider.

9) The suspension shock-absorbing 360· swivel seat is adopted, with armrests and seat belts, which improves the driver's comfort and safety.

10) The fuel position of the engine/diesel tank is convenient, and it is easy to observe the oil level.

11) Both front and rear tires use 16/17-20 tires, with high reliability and stability, and four-wheel drive improves traction.

parameters


ZT30-25 Dimension technological parameters

Overall Dimension
 Length X Width X Height                5910X 2268 X 3760(mm)
Wheel base                                                 2250(mm)
Track                                                      1640(mm)
Min. ground clearance                                 300(mm)

Main Technical Specification
system pressure
 load hydraulic system                                18Mpa
 dig hydraulic system                                 20Mpa
steering hydraulic system                              12Mpa
system flow                                           120L/min
 working modelfour-wheel drive,whole hydraulic system
total operating weight                                   7600kg
maximum speed                                        22Km/h
8最 maximum gradient capacity                         30°
Front bucket
loading bucket capacity                            1.0m3
rated loading                                        2500KG
maximum articulated height of bucket               3400(mm)
 bucket discharge height                              2795(mm)
bucket discharge distance                             1048(mm)
loading lift capacity                                  25KN
bucket hydraulic translation function                yes
bucket lift time                                      6.8s
bucket lower time                                    2.5s
bucket discharge time                                1.2s
maximum tractive force                                 39KN
maximum breakout force                              38KN
 backacter bucket
backacter bucket capacity                                 0.1-0.4m3
backacter discharge height                            3878(mm)
maximum digging depth                             4080~4500(mm)
maximum digging radius                             5688(mm)
bucket slewing angle                                190°
bucket digging capacity                                46KN
bucket stick digging capacity                            31KN

Diesel engine
model                                          YUCHAI YC4A105Z-T20
rated power                                     75KW(100HP)
rated speed                                 2400 r/min
cylinder –internal diameter                       4-102
maximum torque                             400N.M
minimum fuel consumption                  235 g/kw.h
displacement                                 4.3L

Transmission system
model of hydraulic pump        fixed shaft power shift transmission
gear shift                   2forward shift 2 reverse shift
torque                   YJ-280
drive pump                   CDXaf3016-IL
flow                           16ml/r
work pump               CBGj2063
flow                           63ml/r

Steering system
type                          articulated hydraulic steering
model of steering control valve                           BZZ5-250
model of turning control valve                        YSF25S-00
steering angle                         36±1°left or right 36±1°
minimum turning radius                             5018(mm)

Axles
main transmission type        single reduction
wheel reduction type       wheel reduction

Wheel
tire size                                                      16/70-20
front wheel pressure                                        0.22Mpa
rear wheel pressure                                         0.20Mpa
service braking         air over hydraulic disc on 4 wheels
parking brake                      manual parking brake

Refill Capacity
fuel tank                       80L
transmission                     25L
front axle                        9KG
rear axle                         9KG
hydraulic tank                140L
