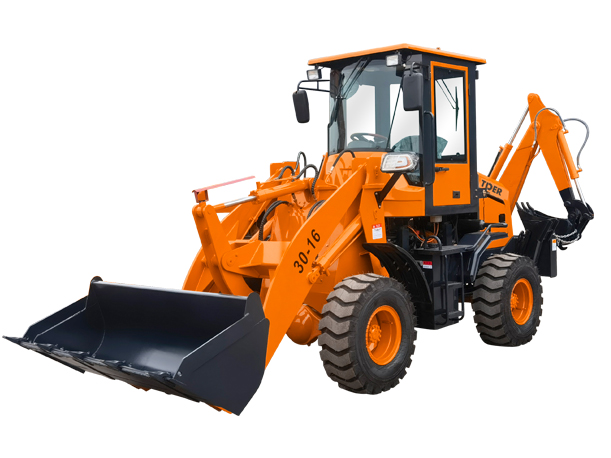

1.6T Backhoe Loader ZT30-16
  • 1.6T Backhoe Loader ZT30-16
Product manual available for download at any time
Please leave your information below for more product information
1.6T Backhoe Loader ZT30-16
Engine Model
YUN Nei
Operation Weight
1600 kg
Bucket Capacity
0.5 m³
1.6T Backhoe Loader ZT30-16
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics

1) The central articulated frame is adopted, the turning radius is smaller, the maneuverability is flexible, and the lateral stability is good, which is convenient for loading operations in narrow sites.

2) The front and rear chassis are made of special chassis at both ends. Each part is fully fixed in a high-strength overall structure. The parts are arranged reasonably and will not be affected by the impact force. Each part can be quickly replaced or repaired, so it has good durability. performance, and excellent stability.

3) The cab adopts a large area of glass, which has good lighting and wide field of vision, and the driver is more comfortable to operate.

4) The air-cap oil caliper disc foot brake system and the outer beam drum hand brake are used, and the braking is safe and reliable.

5) The hydraulic transmission structure is adopted to improve the reliability of the transmission system.

6) It adopts full hydraulic steering, power shifting, and hydraulic control of the working device. The operation of the whole machine is light and flexible, and the action is stable and reliable.

7) Using low-pressure wide-base off-road tires, the rear axle swings, which has good off-road performance and passing performance.

8) The excavation work device that can slide sideways makes the excavation range larger and the application range wider.

9) The suspension shock-absorbing 360· swivel seat is adopted, with armrests and seat belts, which improves the driver's comfort and safety.

10) The fuel position of the engine/diesel tank is convenient, and it is easy to observe the oil level.

 11) Both front and rear tires use 16/17-20 tires, with high reliability and stability, and four-wheel drive improves traction.


parameters


ModelZT30-16
The overall size
1Dimensions (mm)5500*1750*2650
2Wheelbase (mm)2070
3wheel tread(mm)1475
4min. ground clearance (mm)250
The performance parameters
1System pressure (MPa)16
2Machine weight (Kg)3400
3Max. speed (Km/h)25
4Max. climbing capacity (°)25
5Min. turning radius (mm)3500
Mining parameters
1Max. digging depth (mm)2000
2Dig unloading height (mm)1800
3Max. digging radius (mm)2700
4Width of  bucket (mm)400
5Bucket capacity (m2)0.1
6max. digging height (mm)3300
7Maximum digging force (kN)25
8Rotary Angle of excavator (°)180
Loading parameters
1Max. unloading height (mm)2800
2Max. unloading distance (mm)800
3Bucket width (mm)1800
4Bucket capacity (m³)0.5
5Max. loading lifting height (mm)3300
6Max. breakout force (kN)36
7Forward shovel action time and (S)12
 Engine
1modelIN-CLOUD YN25GB
2typedirect injection,4 strokes
3Rate power (KW)37
4Rate speed (r/min)240
5cylinders-inside diameter4-90
Transmission system
1Gearboxfixed shaft type power shift
2number of gear 2 first/ 2 after
3Hydraulic torque converterZ128F
Steering system
1typeHinged full hydraulic steering
2Steering Angle (°)33
Bridge
1typeisuzu
Tire
1specifications20.5-16
2Front wheel pressure (kPa)250
3Rear wheel pressure (kPa)250
4Crane brakeOil brake drum brake
5The parking brakeManul
Oil amount
1fuel tank (L)30
2Hydraulic tank (L)30
Other
1Drive typeFour-wheel drive
2Variable speed typeHydraulic variable speed
3Braking distance (mm)3300
